| Model |

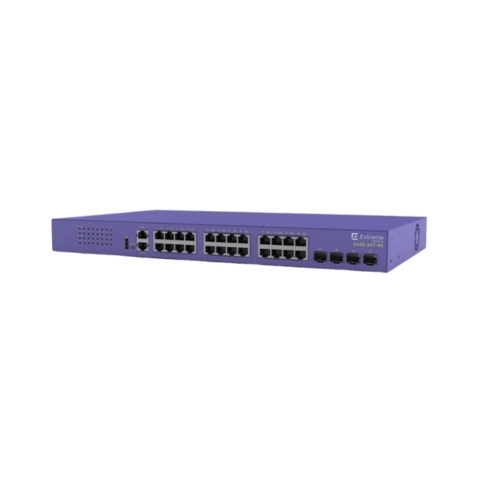

X435-24T-4S |
| Max Active 10/100/1000BASE-T Ports |
• 24 |
| Max Active 1Gb/2.5Gb SFP Ports |
• 4 |
| Aggregated Switch Bandwidth |
• 68 Gbps |
| Frame Forwarding Rate |
• 50.6 Mpps |
| Specifications |
• Layer 2/MAC Addresses: 16K
• 4096 VLANs/VMANs (2 VLANs reserved for system use)
• IPv4 LPM Entries: 32
• IPv4 Hosts: 3100
• IPv6 LPM Entries: 16
• IPv6 Hosts: 500
• IP Multicast groups: 64
• IP Multicast (s,v,g) entries: 1500
• 9216 Byte Max Packet Size (Jumbo Frame)
• 8 queues per port
• 1K ingress ACL rules
• OnePolicy Scaling
• Up to 192 authenticated policy users per switch
• Policy Profiles: 63
• Unique Permit/Deny Rules per switch: 184 |
| CPU/Memory |
• ARM A9 CPU
• 512 MB DRAM
• 128 MB Flash |
| Operating Conditions |
• Temperature
• 8-port X435 models: 0° C to 40° C (32° F to 104° F)
• 24-port X435 models: 0° C to 45° C (32° F to 113° F)
• Humidity: 10% to 95% relative humidity, non-condensing
• Altitude: 0 to 3,000 meters (9,850 feet)
• Shock (half sine) 30m/s2 (3G), 11ms, 60 shocks
• Random vibration: 3 to 500 Hz at 1.5 G rms |
| Weights |
• 2.95 kg |
| Dimensions |
• 441mm x 43.5mm x 254mm |
